Transmission Assembly. 1998 Lotus Esprit

Lotus Esprit Transmission Parts

This Fits Your 1998 Lotus Esprit

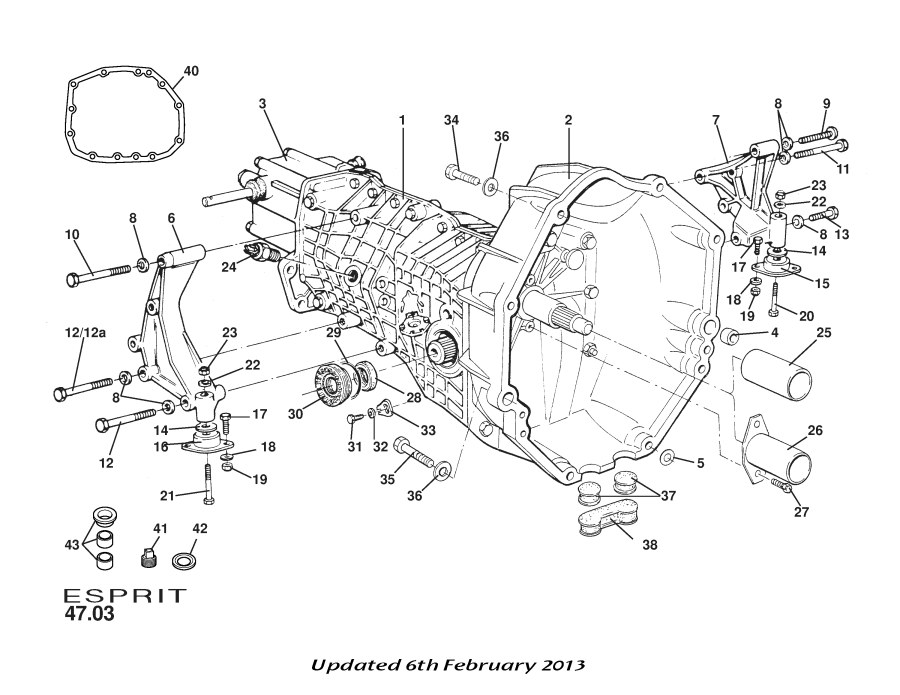

Transmission Assembly

Please select a retailer to view local or discounted pricing.

Midwestern Auto Group

Distance: 7.4 mi

Shop Now

Lotus Of Pittsburgh

Distance: 159.41 mi

Shop Now

Lotus Parts Online

Distance: 168.88 mi

Shop Now

#

Product Name

Price

Part Number

Qty.

02

CLUTCH HSNG V8 - 96/97MY ALLOY

Clutch Housing. alloy
Single plate clutch
V8, B918E0150K R/B

(Current price) $ 484.52
MSRP

A082Q4073J
02a

CLUTCH HSNG V8 - 96/97MY ALLOY

Clutch Housing, cast iron
Single plate clutch
V8

(Current price) $ 484.52
MSRP

A082Q4073J
02c

CLUTCH HSNG V8 - 96/97MY ALLOY

Clutch Housing Assembly, alloy, twin plate clutch
Incl. barrel release pivot and fork V8, prior to '98 MY

(Current price) $ 484.52
MSRP

A082Q4073J
02e

CLUTCH HOUSING-HIGH TORQUE(SP)

Clutch Housing
Single plate clutch
GT3

(Current price) $ 969.22
MSRP

A082F4146S
03a

REAR COVER & CROSS SHAFT ASSY

Rear Casing Assembly
Type UN1 026
GT3, prior to VIN: W2272

(Current price) $ 858.24
MSRP

A082F6553S
03b

REAR COVER/SHAFT 98 ON (SP)

Rear Casing Assembly
Type UN1 027/028
V8, '98 MY, GT3, VIN: W2272

(Current price) $ 1,488.83
MSRP

A082F6579S
05

SHIM-BRASS LAMINATE

Shim, clutch housing to sump.

(Current price) $ 2.03
MSRP

A082F6358F
06

BRACKET-GEARBOX MOUNTING RH

Mounting Bracket, gearbox, RH

(Current price) $ 26.14
MSRP

A082F0766K
07

BRACKET-GEARBOX MOUNTING LH

Mounting Bracket, gearbox, LH.

(Current price) $ 257.78
MSRP

A082F0767K
08

WASHER M10 X 20.5 X 1.8

Washer, flat, M10 x 20, bracket to gearbox.

(Current price) $ 0.11
MSRP

A075W4024Z
09

SOCKET SCREW M10X45 BUTTON

Screw, M10 x 45, button hd., bracket to gearbox.

(Current price) $ 1.18
MSRP

A082W7057F
10

BOLT M10X80MM G8.8 HEX HT G500

Bolt, M19 x 80, hex. hd., bracket to gearbox.

(Current price) $ 1.46
MSRP

A075W2061Z
12

BOLT M10 X 75MM

Bolt, M10 x 75, hex. hd., bracket to gearbox.
1 off, V8 prior to '98 MY

(Current price) $ 17.01
MSRP

A075W2059Z
13

SETSCREW M10 X 30MM

Bolt, M10 x 30, hex. hd., bracket to gearbox.

(Current price) $ 0.23
MSRP

A075W1049Z
14

WASHER 7/16" X 2" X 1/8"

Washer, flat, M10, mounting to bracket.
LH: 1 off, RH: 2 offRequired: 1/2

(Current price) $ 8.39
MSRP

A075W4006Z
15

GEARBOX MOUNTING LH (17-1917)

Mounting Rubber, gearbox. LH
Marked: 17-1917R

(Current price) $ 174.01
MSRP

A918E0265F
16

GEARBOX MOUNTING RH (17-1918)

Mounting Rubber, gearbox. RH
Marked: 17-1917L (now marked

(Current price) $ 174.52
MSRP

A918E0266F
17

SETSCREW M8 x 20MM

Screw, M8 x 20, hex. hd., gearbox mounting to chassis.

(Current price) $ 0.34
MSRP

A075W1038Z
18

90393635 WASHER M8X16.6X1.4A

Washer, flat, M8 x 16, gearbox mounting to chassis.

(Current price) $ 0.06
MSRP

A075W4020Z
19

NYLOC NUT M8 P

Nyloc Nut, M8, gearbox mounting to chassis.

(Current price) $ 0.23
MSRP

A075W3010Z
20

BOLT 7/16 UNF X 4 1/2" HEX

Bolt, 7/16" UNF x 4-+", mounting to bracket, LH.

(Current price) $ 2.93
MSRP

A082F4113F
22

WASHER 7/16"X 7/8" 18G

Washer, flat, 7/16 UNF, gearbox mounting bolt.

(Current price) $ 0.06
MSRP

A075W4005Z
23

NYLOC NUT 7/16" UNF T

Nyloc Nut, 7/16" UNF, gearbox mounting bolt.

(Current price) $ 0.28
MSRP

A075W3004Z
24

REVERSE LAMP SWITCH

Reverse Lamp Switch (ball type).

(Current price) $ 15.32
MSRP

A082F6564F
27

SETSCREW M6 X 12MM

Screw, M6 x 10, hex. hd. sleeve fixing

(Current price) $ 0.11
MSRP

A075W1027Z
33

LOCK PLATE-DIFF NUT

Locking plate, ring nut

(Current price) $ 1.46
MSRP

A082F6396F
34

BOLT M10 X 45MM

Bolt, M10 x 45, hex. hd., bell housing to engine

(Current price) $ 0.28
MSRP

A075W2053Z
35

BOLT M10 X 55

Bolt, M10 x 55, hex. hd., bell housing to engine

(Current price) $ 0.79
MSRP

A079W2057F
36

WASHER M10 X 20.5 X 1.8

Washer, flat, M10

(Current price) $ 0.11
MSRP

A075W4024Z
39

NLS(RENAULT 7700565780)06/3/15

Gasket, gearbox to clutch housing
Not illustrated

(Current price) $ 47.38
MSRP

A082F6404F
40

NLS(RENAULT 7700647119)4/12/15

Gasket, rear cover to gearbox

(Current price) $ 35.88
MSRP

A082F6403F
42

NLS(04/12/15)RENAULT7703087179

Oil Seal, cross shaft, LH

(Current price) $ 38.53
MSRP

B082F6379F
43

OIL SEAL-CROSS SHAFT RH (HT)

Oil Seal, cross shaft, RH

(Current price) $ 89.18
MSRP

A082F6538S
48

SYNTRANS GEAR OIL (12 X 1L)

Castrol TAF-X gear oil
Not illustrated

(Current price) $ 811.59
MSRP

B082F6600S
01

OBSOLETE (01.12.03)

Transmission Assembly
Type UN1 027
V8, prior to '98 MY

Product Not Available

A082F4150F
01a

NO LONGER SERVICED (07.11.13)

Transmission Assembly, Reconditioned exchange
Type UN1 027
V8, '98 MY on, A082F4186F

Product Not Available

A082F4186R
01b

OBSOLETE (21/03/11)

Transmission Assembly
Type UN1 026
GT3, prior to VIN: W2272

Product Not Available

A082F6522F
01c

NO LONGER SERVICED (07.10.15)

Transmission Assembly
Type UN1 028
GT3, VIN: W2272 on

Product Not Available

A082F4187F
02d

NO LONGER SERVICED (12.04.16)

Clutch Housing, alloy, twin plate clutch
Housing only
V8, V8-GT, '98 MY on

Product Not Available

A082Q4064K
03

OBSOLETE (28.11.00)

Rear Casing Assembly
Type UN1 027
V8, prior to '98 MY

Product Not Available

A082F6570S
04

NO LONGER SERVICED (12.04.16)

Dowel, clutch hsg. to engine.

Product Not Available

B907E6181F
12a

BOLT M10X130 SKT CAP 12.9 ZNP

Bolt, M10 x 130, hex. hd. bracket to gearbox
Retains cable support bracket V8 prior to '98 MY

Product Not Available

A082W7147F
25

OBSOLETE (30/08/07)

Sleeve, plain, clutch release bearing guide
Alloy bell housing
61mm, single plate clutch

Product Not Available

B082Q4033K
25

R/B B082Q4033K

Sleeve, plain, clutch release bearing guide
Alloy bell housing
61mm, single plate clutch

Product Not Available

A082Q4033F
28

NO LONGER SERVICED 29/08/17

Oil seal, drive shaft

Product Not Available

A082F6392F
29

NO LONGER SERVICED 5/4/17

'O' ring, ring nut

Product Not Available

A082F6393F
30

NO LONGER SERVICED (02.01.14)

Ring nut, bearing adjusting
Incl. oil seal, 'O' ring & steel shield

Product Not Available

A082F6391F
31

OBSOLETE (19/01/09)

Screw, locking plate

Product Not Available

A082F6394F
32

OBSOLETE (02/09/09)

Washer

Product Not Available

A082F6378F
37

OBSOLETE (24/12/02)

Bung, clutch housing
Early bell housing

Product Not Available

A082Q4055S
41

NO LONGER SERVICED (05/03/15)

Plug, 3/8" BSP, oil drain & fill/level

Product Not Available

A082F6397F
